Final Gantry Assembly¶
Mount Carriage to Gantry¶¶

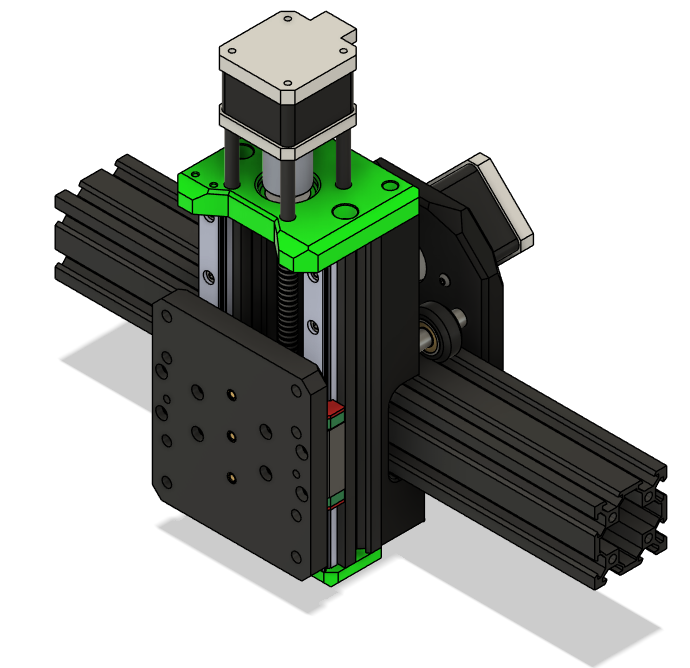

- Slide the carriage onto the 4040 frame extrusions by place the V-wheels into the V-slots.
Warning
Use gentle force and double-check alignment.

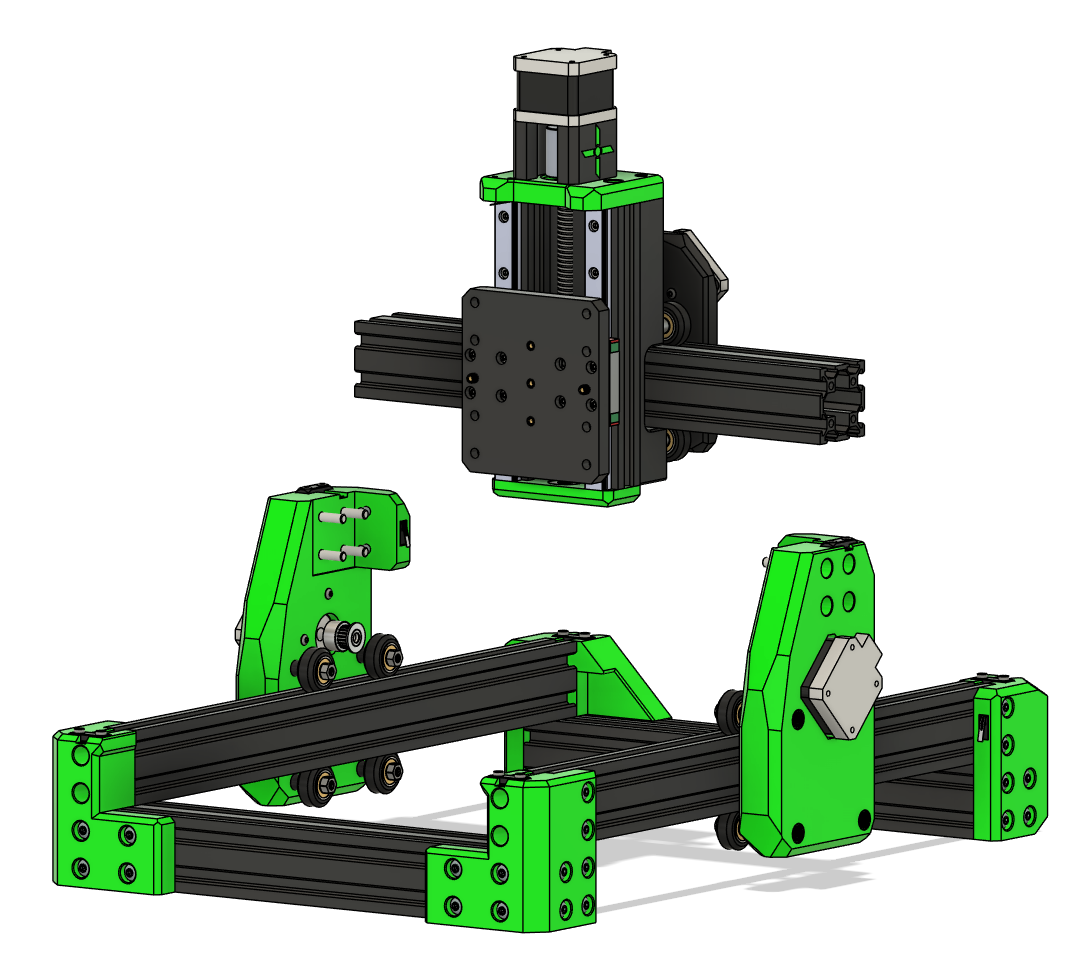

Mount Assembly to Frame¶
Parts Needed¶
| Qty | Item | Source | Notes |
|---|---|---|---|
| 8pc | M5x30 BHSC | Buy | Frame bolts |
Attach bolts and the frame is complete
Ready to Proceed?¶
You have now completed the frame assembly and ready to move on to the Belts and Endstops.
