Dremel Clamp

This chapter covers attaching your spindle or Dremel clamp.

1. Parts Required

Qty Item Source Notes
4pc M5x10 Buy Some may be spare from Ender3
1pc Dremel or Ø52–65mm Clamp Buy/Printed Depends on spindle choice

2. Spindle / Dremel Clamp Installation

  1. Choose the clamp compatible with your spindle/Dremel.
  2. Attach the clamp to the X carriage plate using M3 or M5 screws as per your design.
  3. Slide spindle or Dremel into the clamp.
  4. Adjust the height and secure tightly.

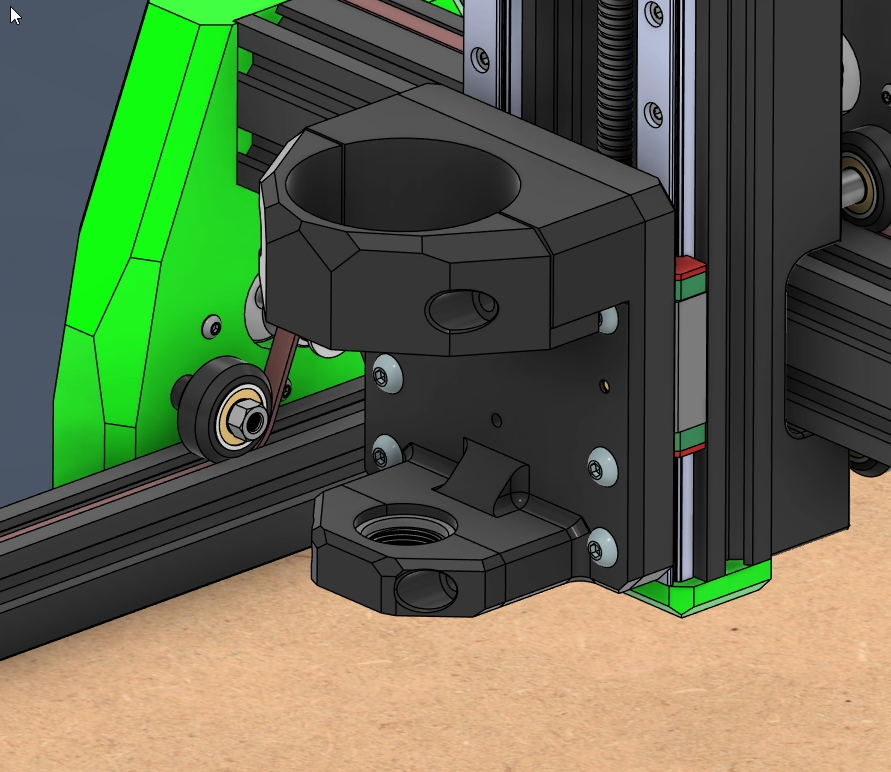

Dremel Clamp

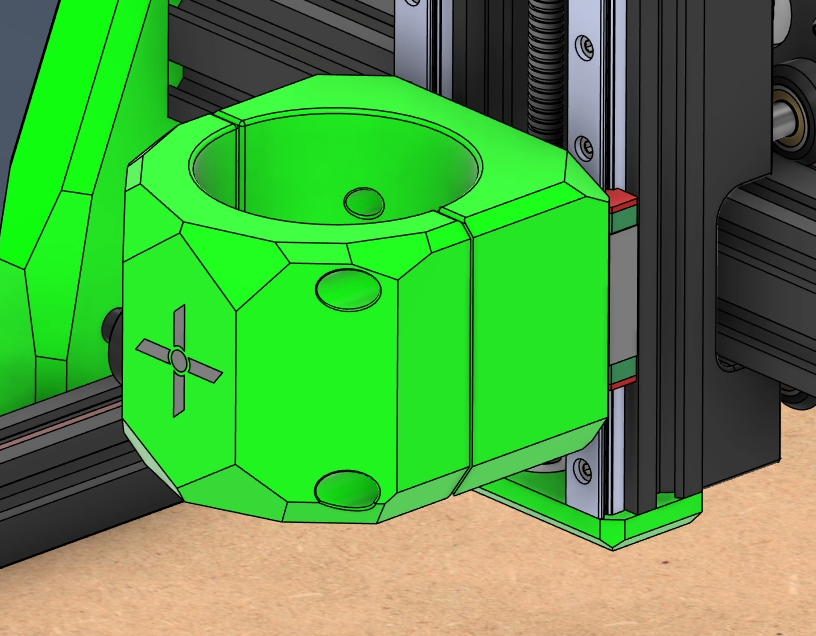

Spindle Clamp

Tips

Tip

If using a Dremel, you may need to slightly modify the printed clamp to fit snugly.

Warning

Ensure the spindle cannot move during operation — any slip can damage the machine or workpiece.

Ready to Proceed?

You have now completed tool attachment and ready to move on to the Wiring and Electronics.
