Gantry¶

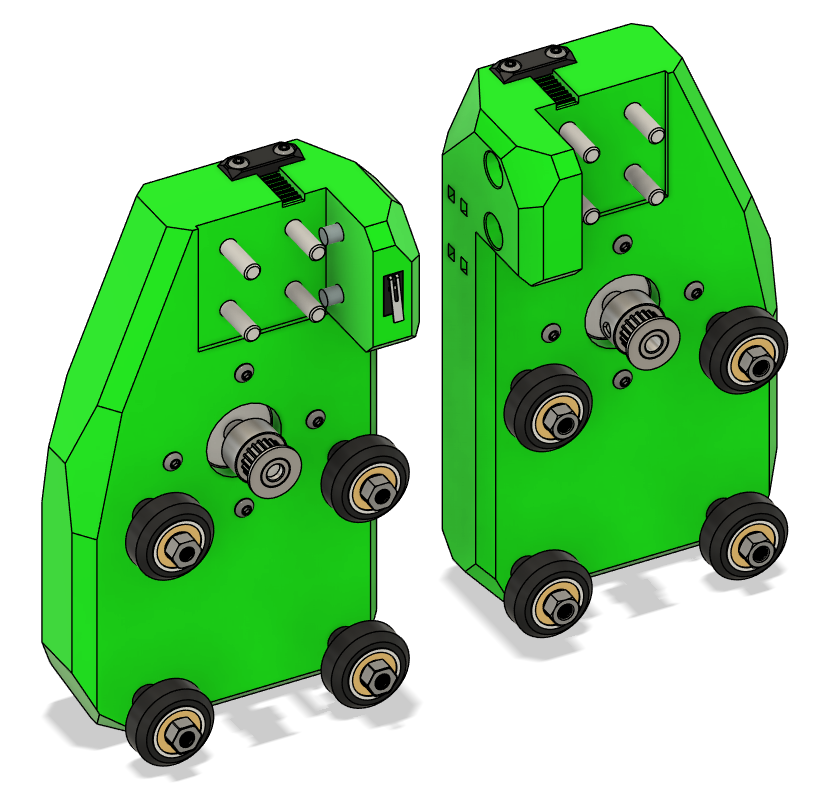

Assemble the Gantry Brackets¶
!!! Note: Press fits and tolerances may vary slightly between frames.
Parts Required¶
| Qty | Part | Source | Notes |
|---|---|---|---|
| 4pc | Heatset | Buy | Voron Spec |
| 8pc | M5x45 SHSC | Ender3 | Remove shims from these |
| 8pc | M3x10 | BUY | |
| 8pc | 8mm Spacer (Printed or 5mm bore Alu) | Ender3 | |
| 8pc | V-Wheels | Ender3 | |
| 8pc | M5 Locknuts | Ender3 or BUY |

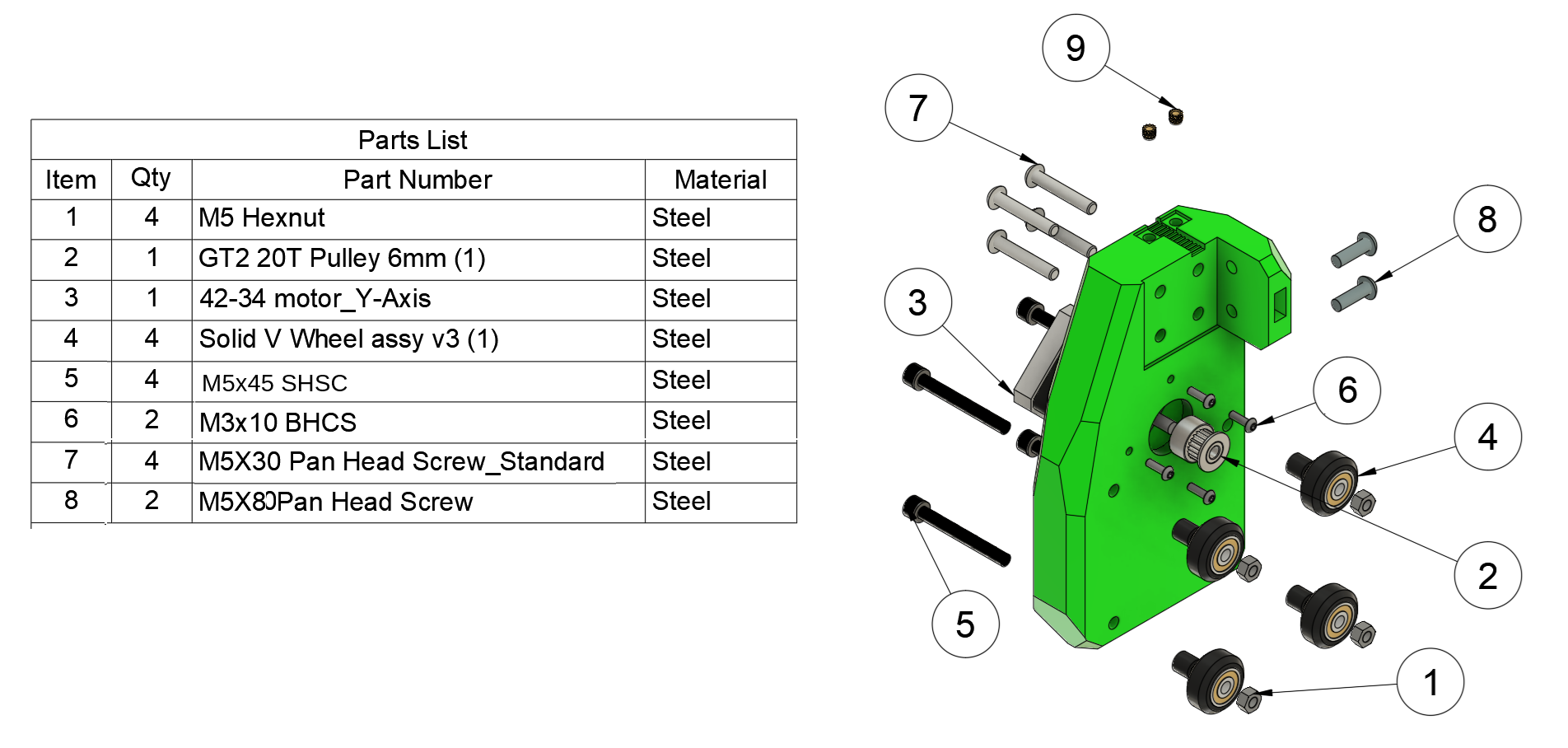

Exploded View¶
Assembly Steps¶

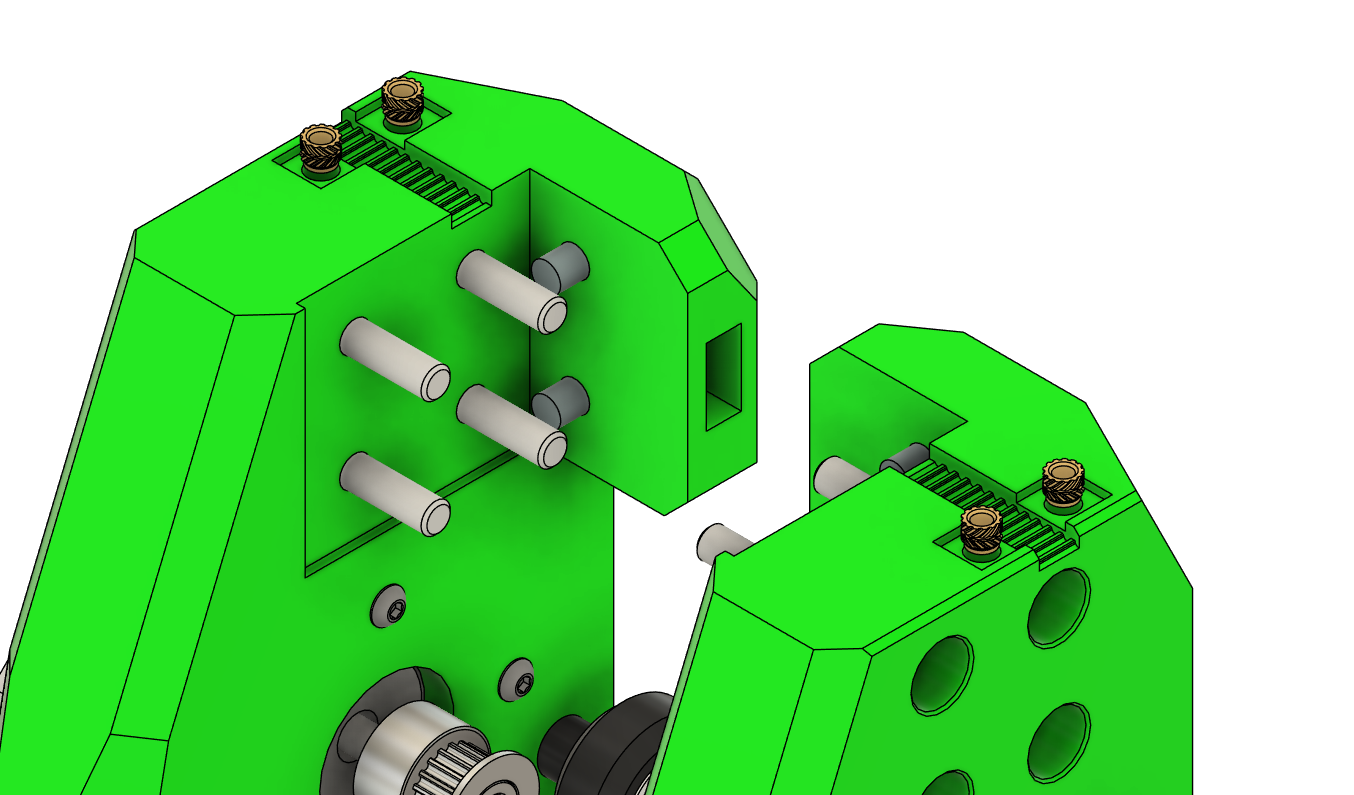

Add Heatsets to XY Joints¶
- Insert heatsets
Attach Nema17 Motors¶
- Remove stock pulley from motor with puller if not done already.
- Loosely attach the 20T pulleys to the X-motor if not done already.
- Add the M3x10 screws for securing the motor.
Tip: Do not tighten fully yet — we will adjust alignment on the frame.

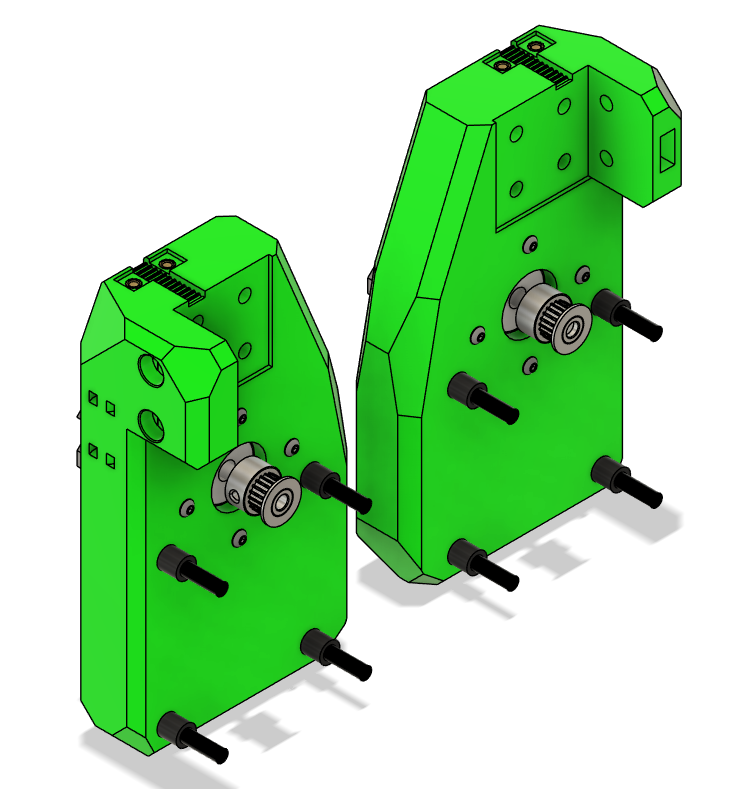

Mount V-Wheels¶
- Slide the M5x45 screws through the XY joint mounting holes.
- Place the 8mm spacers between the XY joint and the wheel mounts.
Add V-Wheels and Lock Nuts¶
Ready to Proceed?¶
Once you have the gantry brackets assembled, continue to the next section to and begin the frame assembly.
